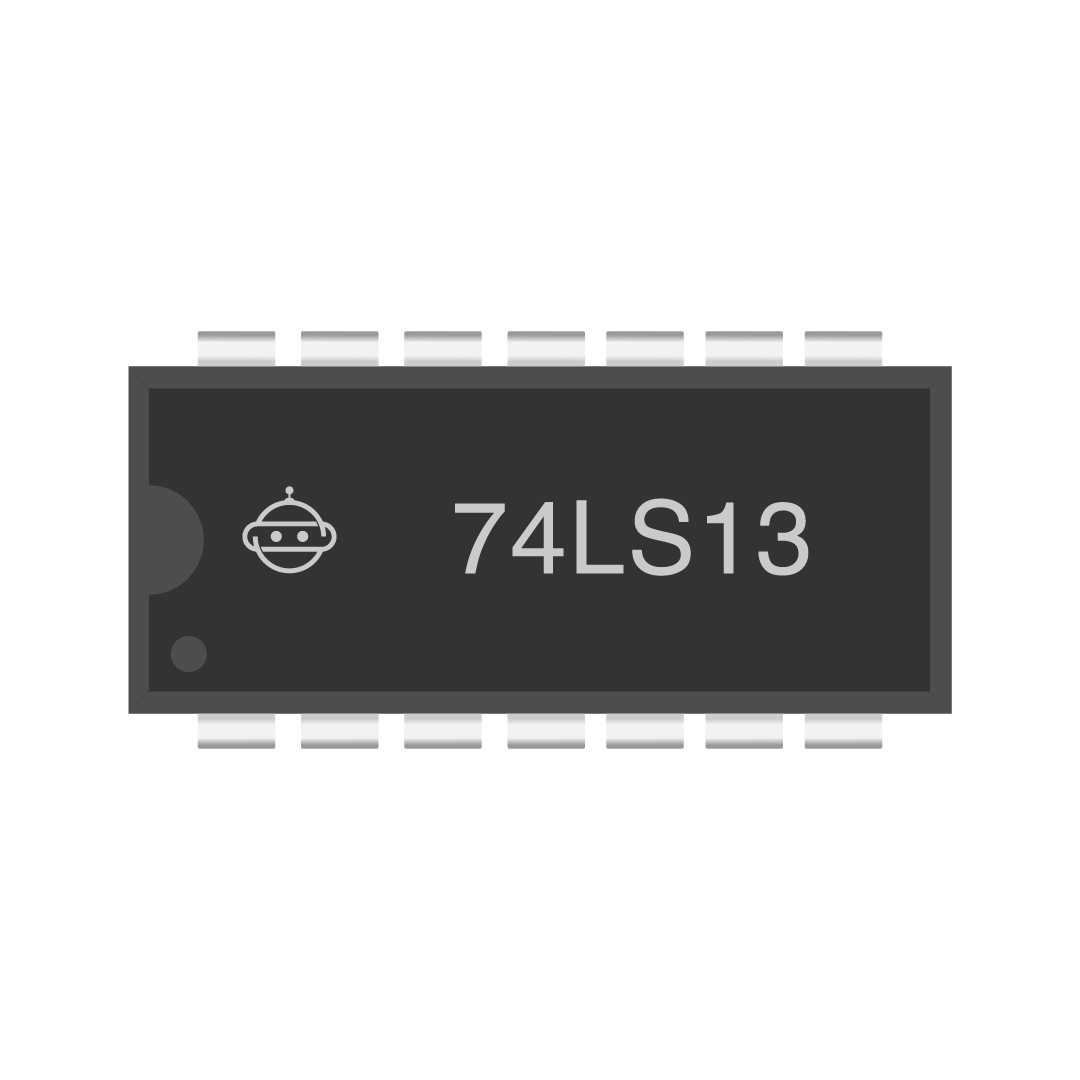

The 74LS13 IC is a Dual 4-Input NAND Gate with Schmitt Trigger functionality, designed to convert slow or noisy input signals into clean, well-defined digital outputs. It is commonly used in clock pulse generation, noise filtering, and waveform shaping.
🔹 Key Features:
✔ Two independent 4-input NAND gates
✔ Schmitt Trigger for noise immunity and signal stabilization
✔ TTL-compatible with low power consumption
✔ High-speed switching for real-time processing
🔹 Applications:
✅ Noise filtering in signal processing
✅ Clock and pulse waveform generation
✅ Digital debounce circuits
🔹 Package:
✔ DIP-14
