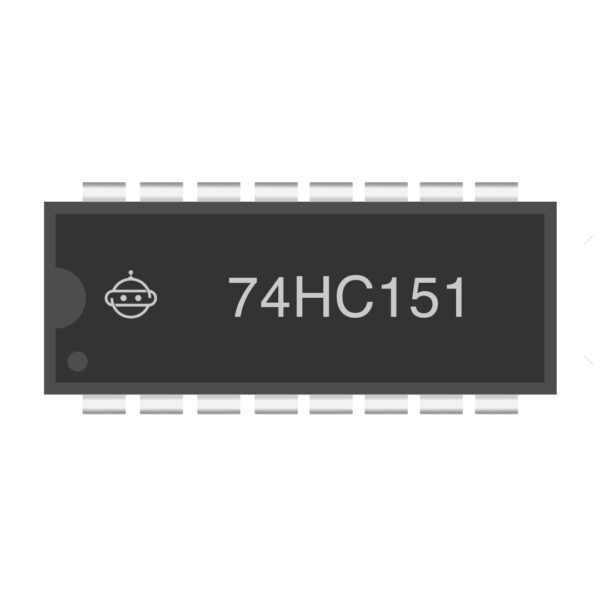

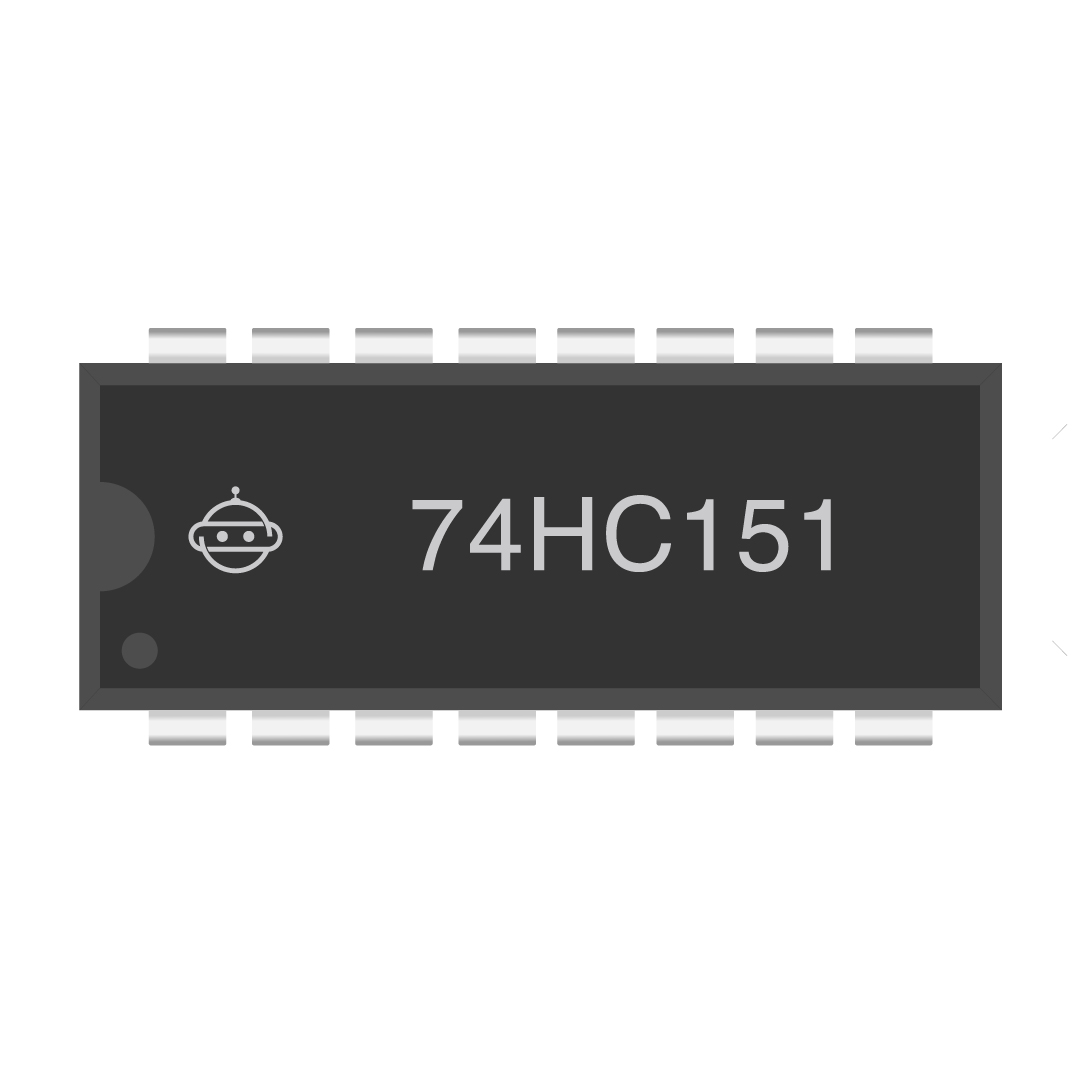

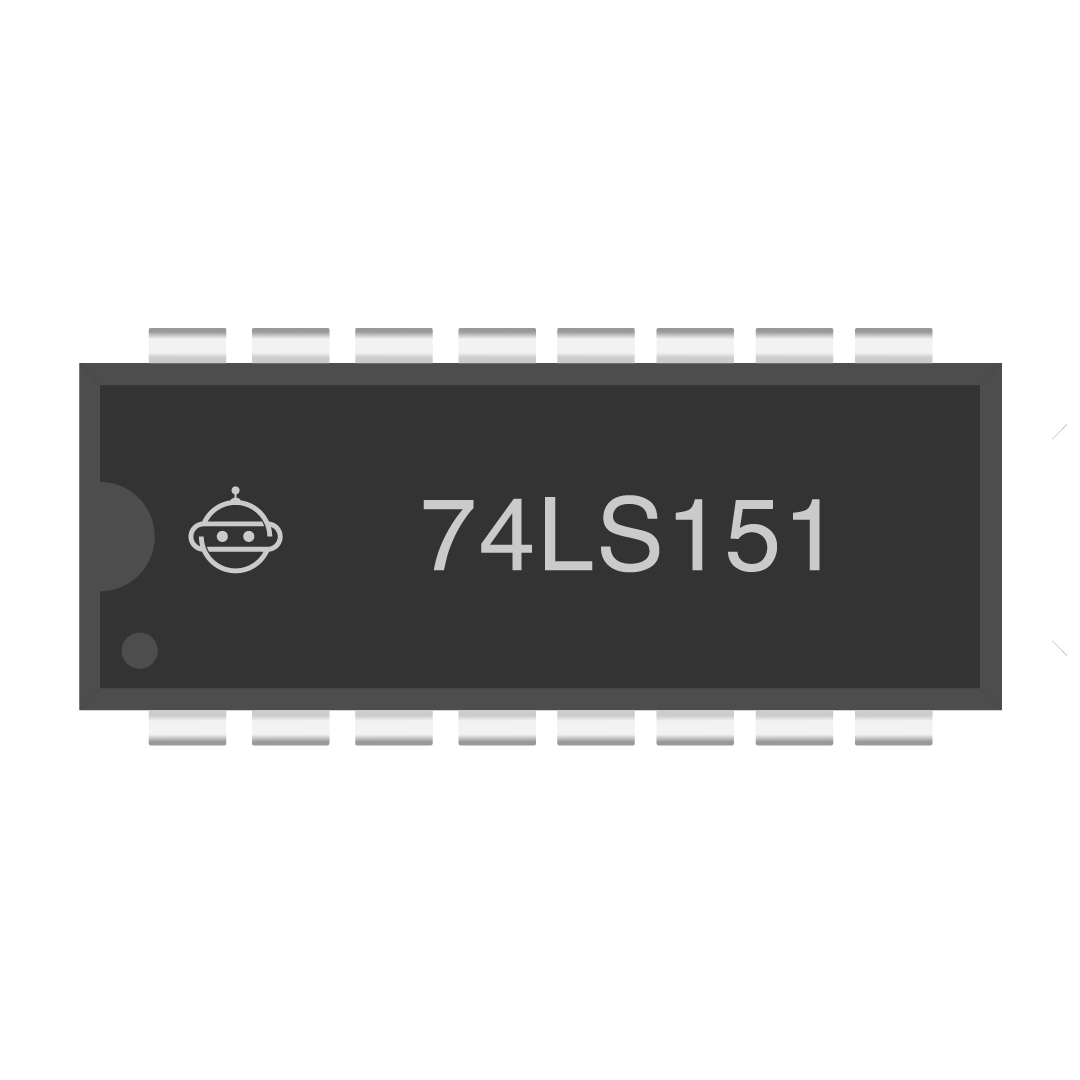

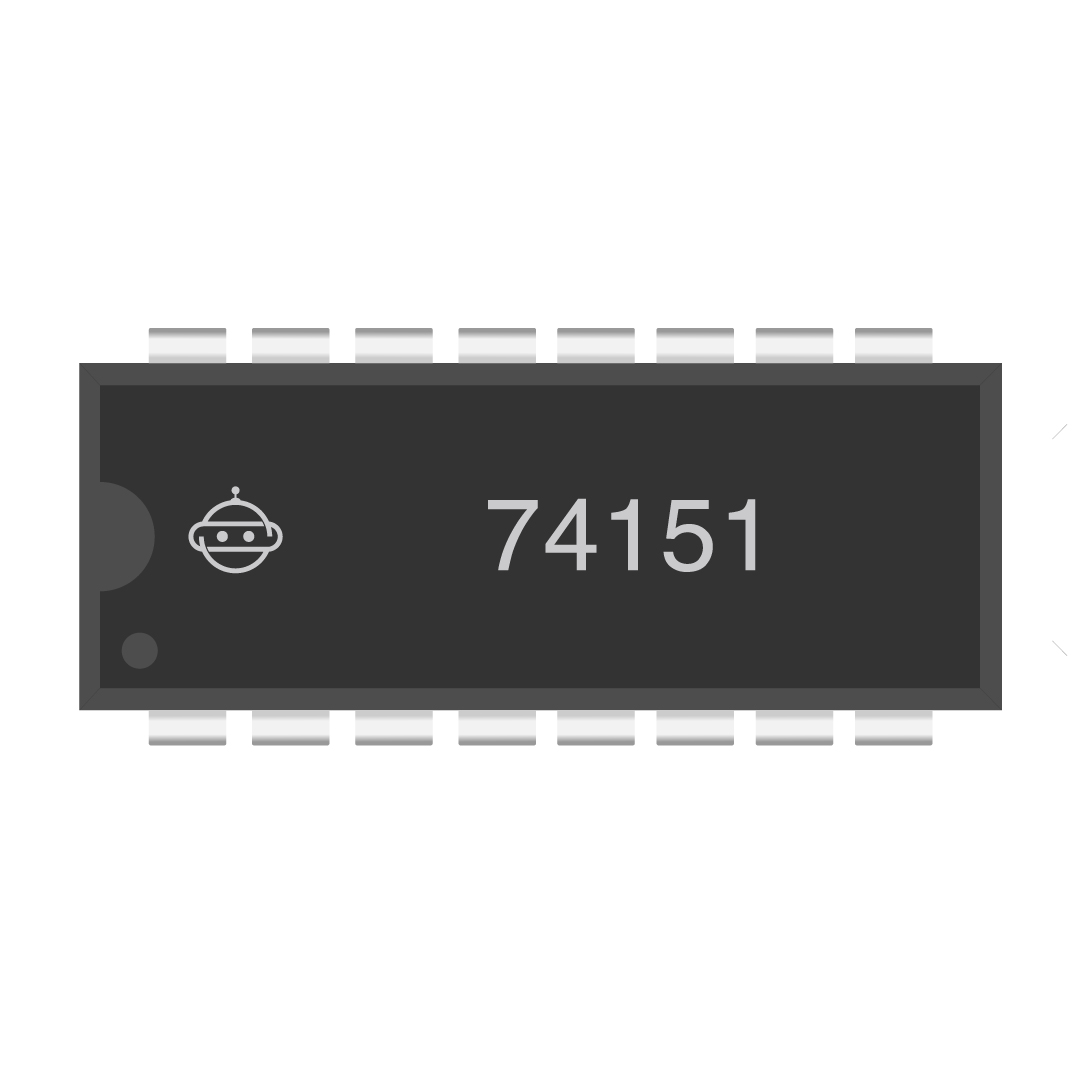

The 74151 IC, available in 74HC151 and 74LS151, is an 8-to-1 multiplexer that selects one of eight data inputs and forwards it to the output based on the 3-bit select input.
🔹 Key Features:
✔ Supports data selection from 8 inputs
✔ TTL and CMOS-compatible versions
✔ Active-low enable input for logic control
✔ High-speed switching
🔹 Applications:
✅ Data routing in microprocessors
✅ Digital signal selection in embedded systems
✅ Multiplexing in communication circuits
🔹 Package:
✔ DIP-16
