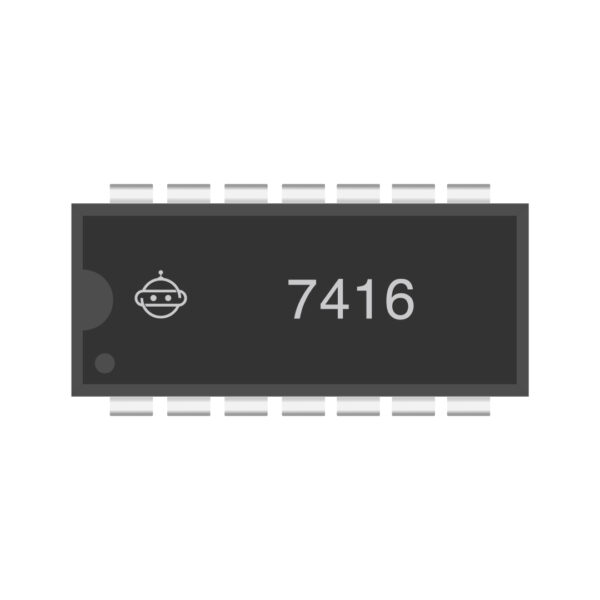

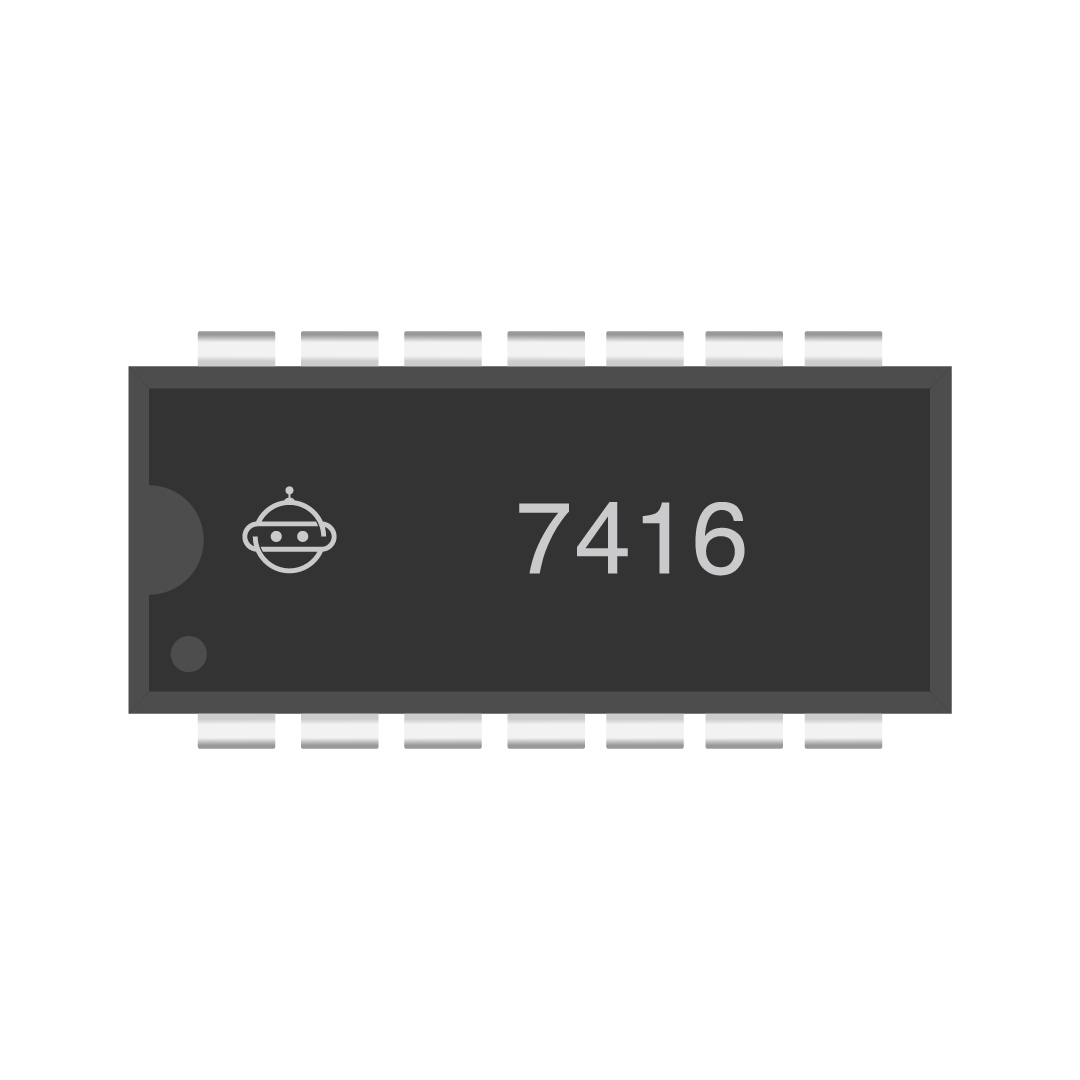

7416 DIP IC – Hex Inverter Buffer with Open-Collector Outputs

The 7416 IC is a Hex Inverter Buffer with Open-Collector Outputs, allowing for high-voltage interfacing and external pull-up resistor use. It is commonly used in relay drivers, LED control, and digital signal processing.

🔹 Key Features:

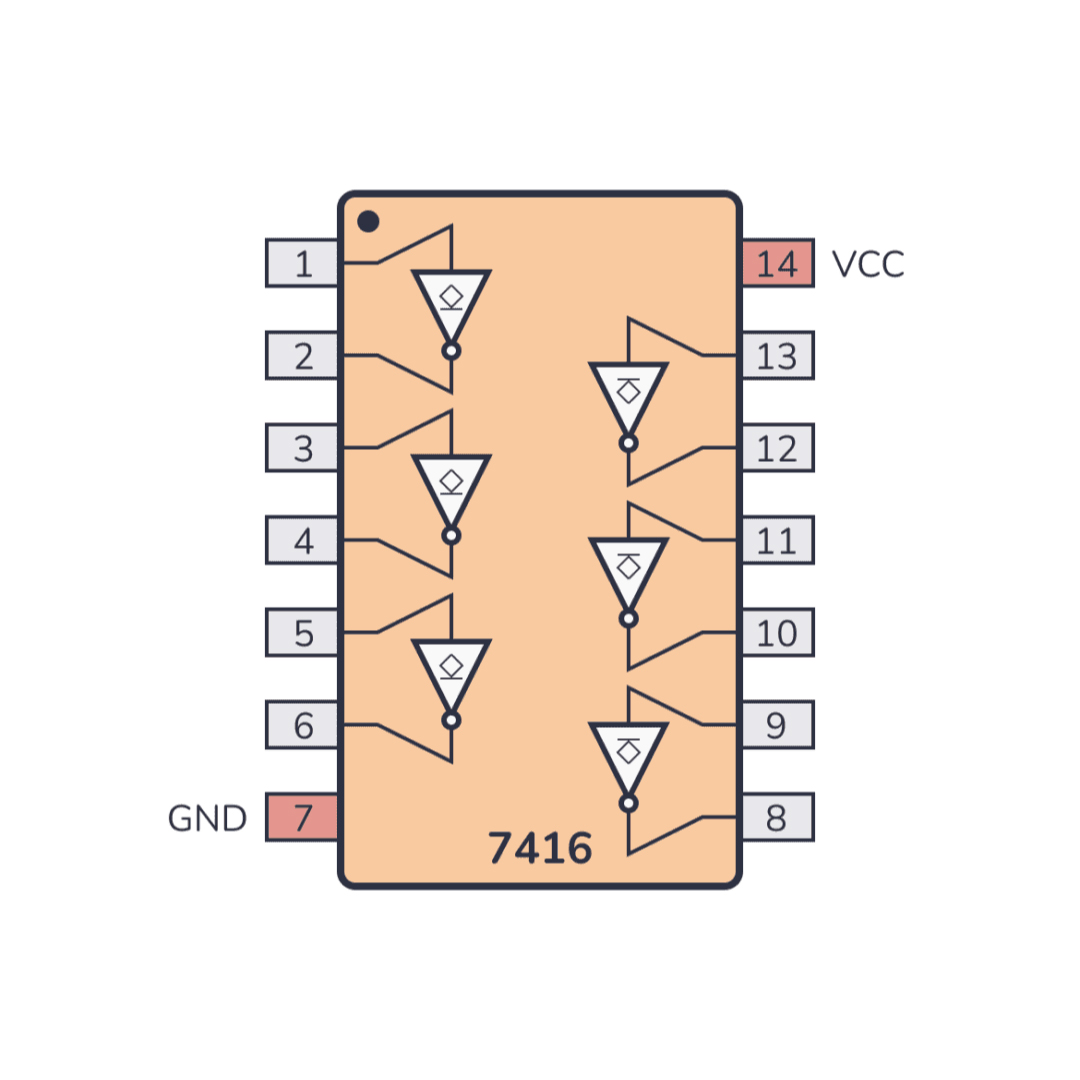

✔ Six independent inverting buffers
✔ Open-collector outputs for flexible design
✔ TTL-compatible with low propagation delay
✔ Capable of driving high-current loads

🔹 Applications:
✅ Voltage level shifting in microcontroller circuits
✅ Relay and LED driving applications
✅ Signal inversion in logic circuits

🔹 Package:
✔ DIP-14
