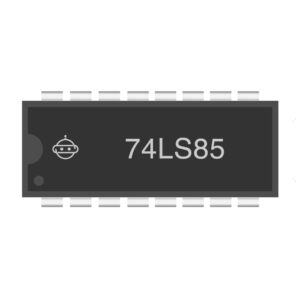

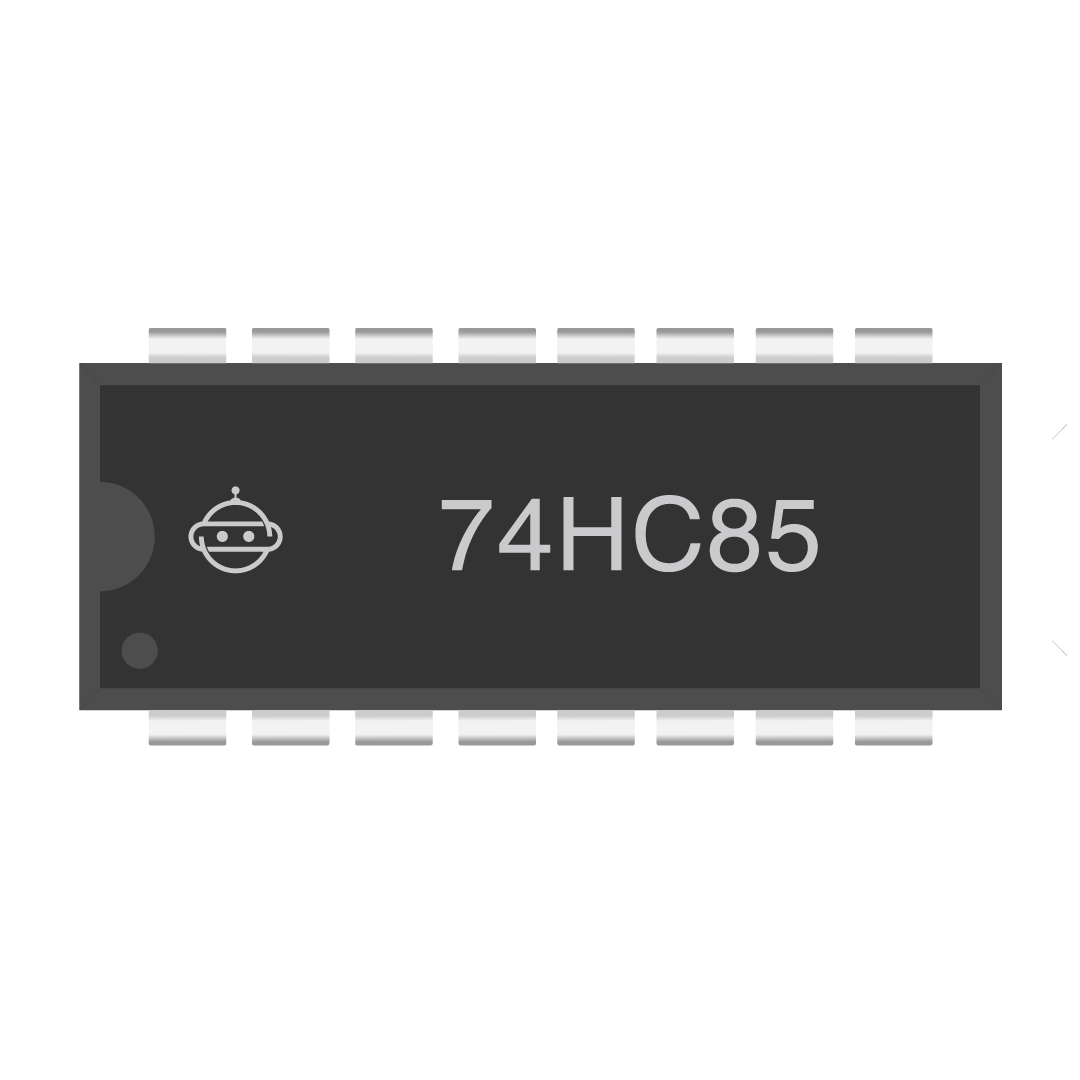

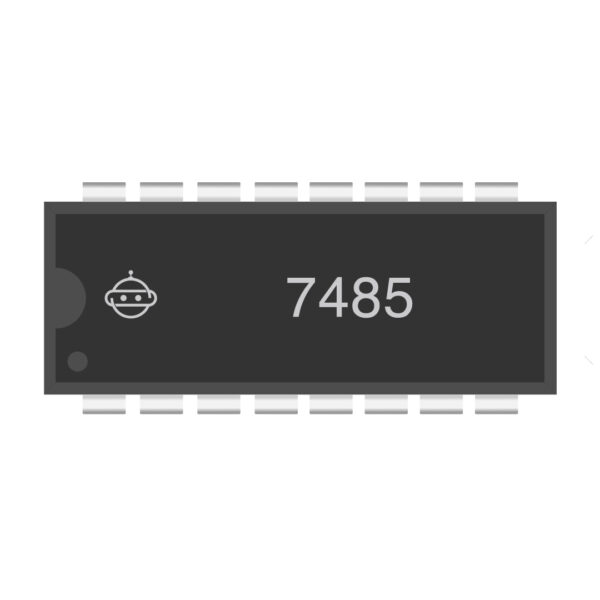

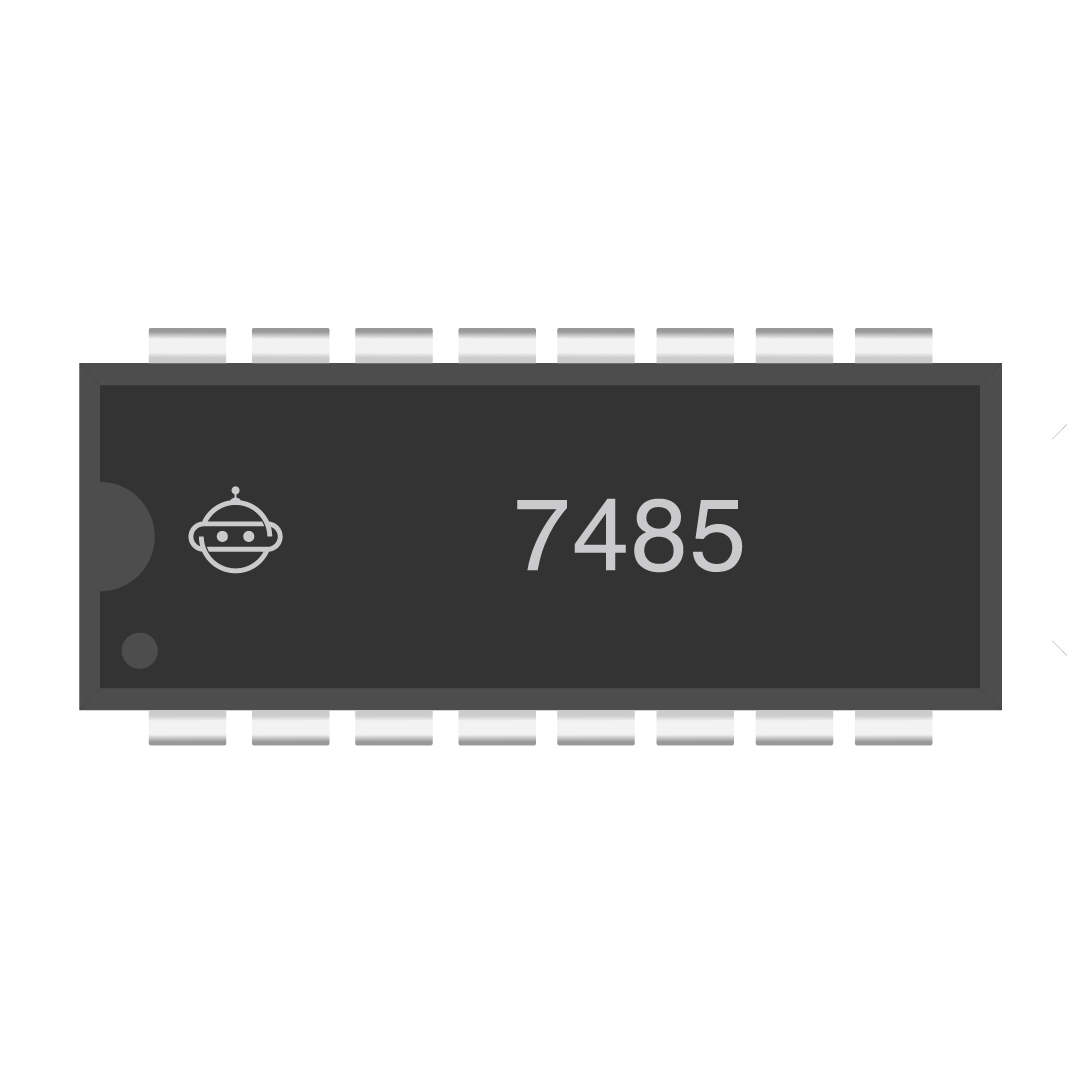

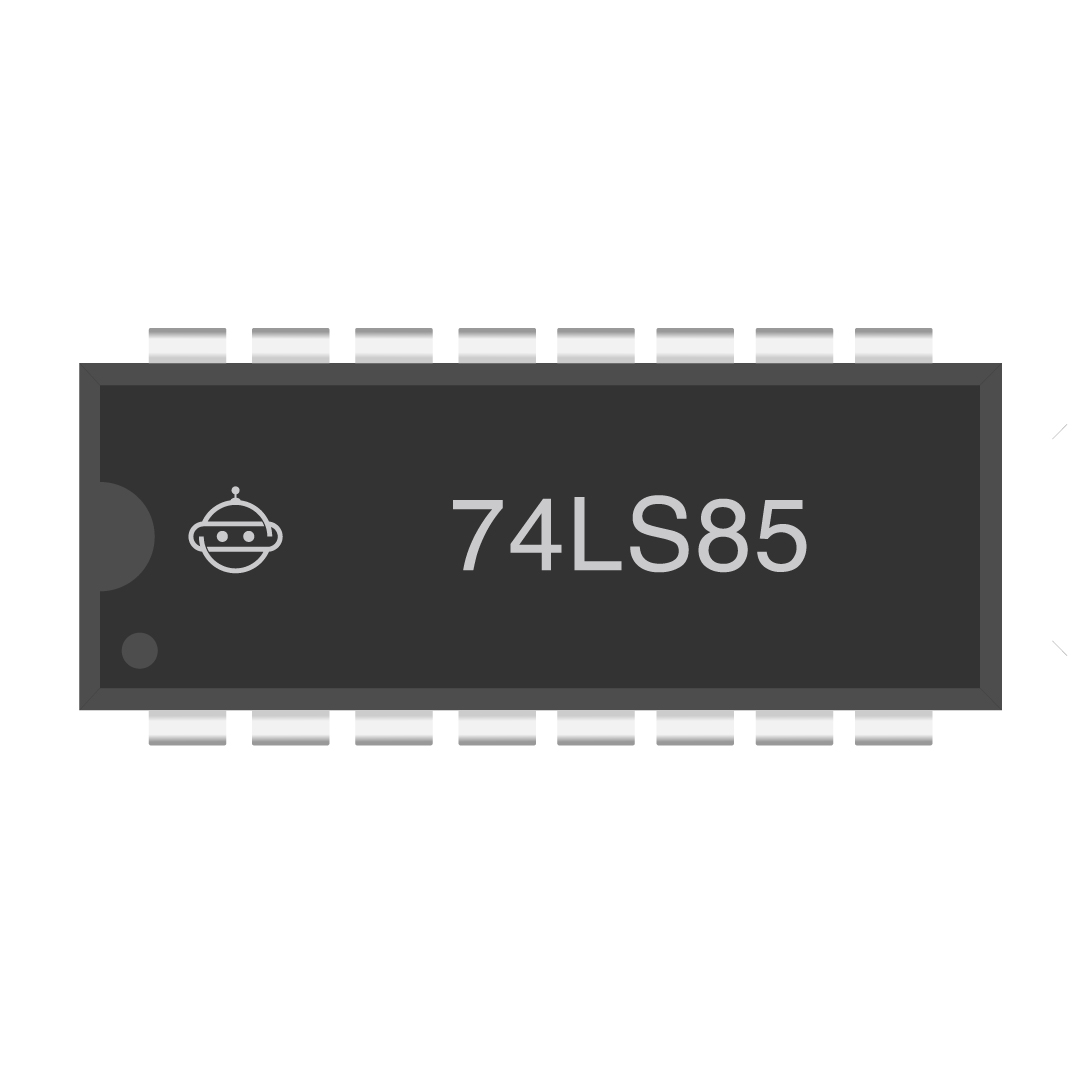

The 7485 IC, available in 74HC85 and 74LS85 variants, is a 4-bit magnitude comparator designed for high-speed arithmetic and logic operations. It compares two 4-bit binary numbers and provides outputs indicating whether they are equal, greater, or less than each other.
🔹 Key Features:
✔ High-speed binary comparison
✔ Cascadable for larger bit comparisons
✔ CMOS technology for low power consumption
✔ Compatible with TTL logic
🔹 Applications:
✅ Digital arithmetic processing
✅ Data sorting and decision-making circuits
✅ Microcontroller and ALU-based designs
🔹 Package:
✔ DIP-16
